2026

E:VOLUTION ALLOY

ZERMAZ

E:VOLUTION ALLOY

CHF 3.690

ARTICLE NUMBER: 20262

Raw power, perfect control, and Swiss precision – full-suspension e-MTB powered by Avinox.

Up to 150 Nm of brutal torque
A solid 1500 watts of peak power
Compact 2.6 kg motor design
Extremely precise, natural, and responsive power control

The power that changes everything – DJI Avinox.

At the heart of the Zermaz lineup is the revolutionary DJI Avinox M2S motor, the most advanced e-MTB drive system on the market.

CONFIGURATION:

Color:Black

Size: (160 - 175 cm) M L XL

Expected in stock 01/08/2026 | Pre-order now!

Range:

195 km

Battery:

800 Wh

Torque:

150 Nm

Weight:

24.5 kg

Smart Assistance

Power Delivered
Smoothly and Precisely

Control isn't a feature. It's the baseline.

The Zermaz E:volution Alloy is built around what truly matters: precise performance, uncompromising control, and confident dominance on any terrain.

At its core is the DJI Avinox M2S — a next-generation high-performance drive unit engineered to deliver power with absolute precision.

With up to 150 Nm of torque and 1500 W peak output, power is immediate — direct, controlled, and always on demand.

No lag. No correction. Only perfectly calibrated performance.

Built for what lies ahead

The aluminium frame forms a rigid, durable foundation — engineered to handle demanding terrain, from technical sections to sustained alpine climbs.

Its balanced geometry and finely tuned suspension work as one system, giving you control exactly when you need it.

Fast when you push. Stable when it counts.

Performance that leads

The DJI Avinox M2S builds on the success of the M1 — the benchmark motor in its class — and pushes performance to a new level:

More precise. More responsive. More controlled.

Every input translates into controlled propulsion. Traction remains consistent. The ride feels intuitive and composed.

The result is a system that adapts to you — seamlessly.

Swiss precision. Engineered in every detail.

Every component serves a clear purpose: maximum efficiency under full control.

Rigid premium aluminium frame
Perfectly balanced geometry for speed and stability
Shimano XT & Deore 12-speed drivetrain
Shimano 4-piston brakes with oversized rotors
RockShox premium suspension with 160 mm travel
Optional 12A fast charging capability
Integrated anti-theft alarm and GPS tracking

Beyond power

The Avinox drive redefines what modern E-MTB performance feels like: powerful, precise, and fully controlled.

This bike doesn't follow trends. It defines its own standard.

Motor & Battery

Motor: Avinox M2S - 150 Nm (1500 W peak)
Battery: 800 Wh Avinox removable
Maximum Range: 195 km
Expected Range: 110 km
Charging Time: 4-5 hours
Torque: 150 Nm (max torque)
Motor Sensor: Torque sensor
Removable Battery: Yes

General Features

Brand: Zermaz
Model Year: 2026
Fork: RockShox PsyIo Silver RC - 160 mm travel
Seatpost: 34.9 mm Diameter
Wheel Size: 29"
Tires: Front: Maxxis Assegai MaxxTerra 29x2.5 / Rear: Maxxis Minion DHR II 29x2.5
Brakes: MT 420, 4-piston
Drivetrain: Shimano Deore M6100, 12-speed
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: Shimano Deore M6100
Rear Shock: RockShox Deluxe Select
Display: Avinox DPC 100
Frame Material: Aluminum
Kickstand: Yes
Frame Type: Mid-step
Rear Rack: No
Stem: Zermaz Performance Stem E-MTB 35
Rear Suspension: Yes
Rear Light: No
Tire Type: Off-road tires
Rider: Men
Brake Disc: Shimano Deore MT410
Color: Black

Size & Weight

Weight: 24.5 kg
Max Rider Weight: 120 kg
Bike Type: Full suspension (Fully)

Geometry (Sizes M / L / XL)

Parameter	M	L	XL
Crank Length	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm
Saddle Width	143 mm	143 mm	143 mm
Seatpost Length	175 mm	200 mm	200 mm
Stack	626 mm	638 mm	652 mm
Reach	455 mm	480 mm	505 mm
Headtube Length	103 mm	117 mm	132 mm
Headtube Angle	64.5°	64.5°	64.5°
BB Height	350 mm	350 mm	350 mm
BB Drop	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	132 mm
Fork Length (full)	577 mm	577 mm	577 mm
Fork Rake / Offset	44 mm	44 mm	44 mm
Front Center	789 mm	820 mm	851 mm
Chainstay Length	435 mm	435 mm	435 mm
Wheelbase	1223 mm	1254 mm	1286 mm
Top Tube Length (horizontal)	599 mm	627 mm	655 mm
Bike Standover Height	754 mm	753 mm	758 mm
Seat Tube Length	405 mm	425 mm	445 mm
Seat Tube Angle	77°	77°	77°
Saddle Height for Effective ST Angle	735 mm	780 mm	825
Max Seatpost Insertion	289 mm	313 mm	337 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm

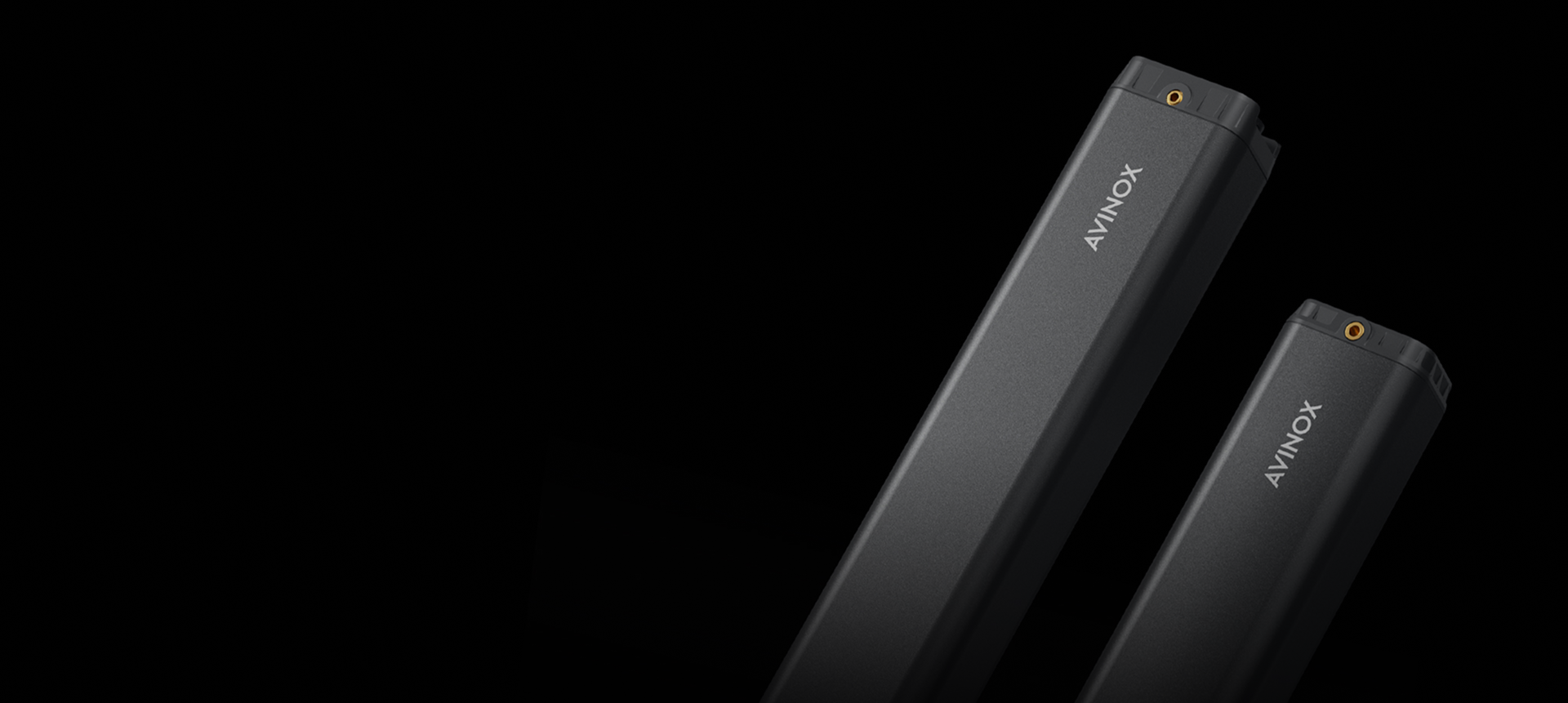

Light Batteries, Extended Range

The Avinox battery combines high capacity with low weight – ideal for long rides as well as demanding trail use.

At 800 Wh, it delivers up to 200 km of range while weighing just 3.74 kg. Advanced battery management from DJI ensures strong performance and long service life. Thanks to GaN fast charging (508 W), the battery reaches 75% in just 1.5 hours – perfect for quick stops on the go.

Provides up to 200km Riding Range

800Wh

Battery Weight

3.74 kg

Smartphone Connectivity,
Enhanced Safety

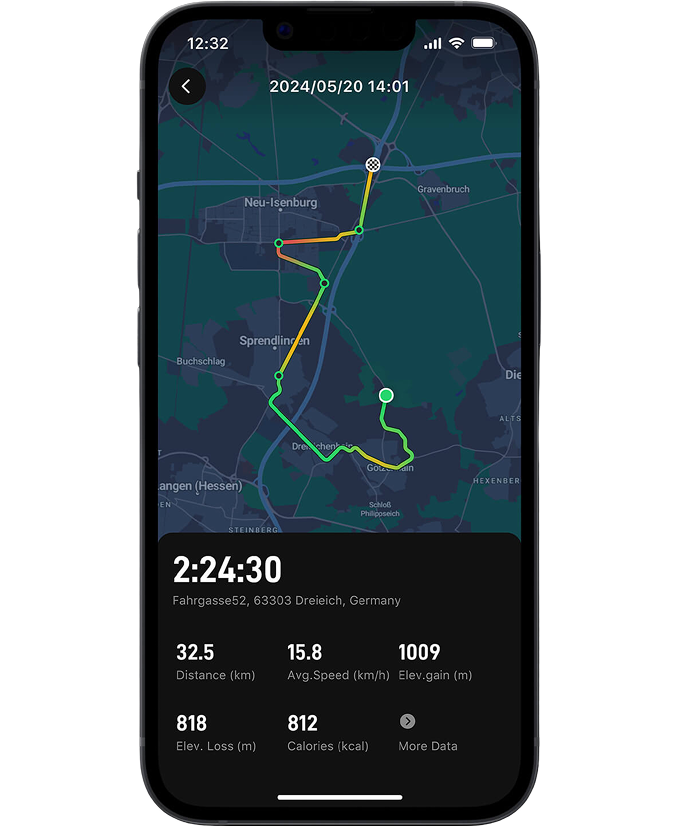

The Avinox system is fully unleashed with the Avinox Ride app. Once paired with the system via Bluetooth, the app provides users with smart features like bike protection, data recording and sharing, assist parameter adjustments, and real-time bike status checking.

The Avinox Ride app connects to the bike via Bluetooth, enabling personalized riding data configuration, abnormal movement alerts, and other features.
