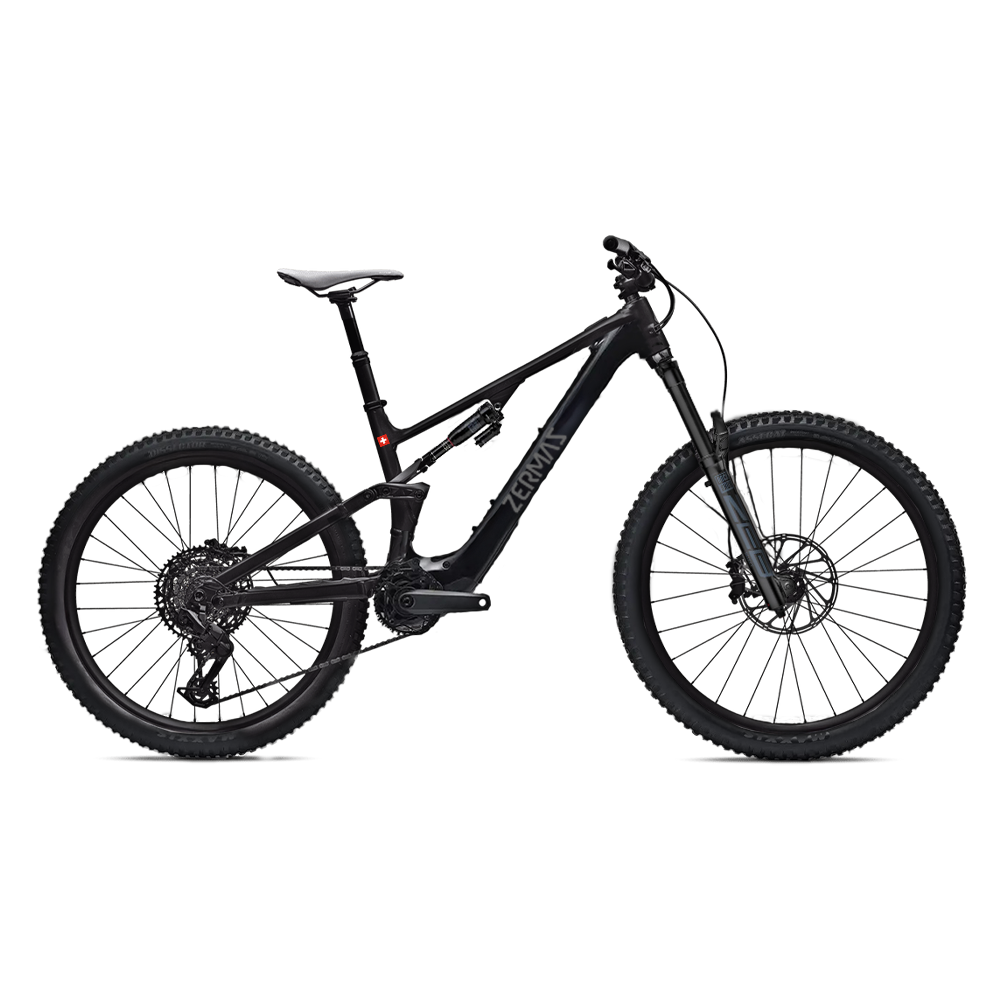

2026

ZERMAZ

E:VOLUTION CARBON

CHF 5.490

ARTICLE NUMBER: 20262

Raw power, perfect control, and Swiss precision – full-suspension e-MTB powered by Avinox and built around a high-performance carbon frame.

Up to 150 Nm of brutal torque
A solid 1500 watts of peak power
Compact 2.6 kg motor design
Lightweight, stiff carbon frame
Extremely precise, natural, and responsive power control

The power that changes everything – DJI Avinox.

At the heart of the Zermaz lineup is the the revolutionary DJI Avinox M2S motor, the most advanced e-MTB drive system on the market.

CONFIGURATION:

Color:Black

Size: (160 - 175 cm) M L XL

Expected in stock 01/08/2026 | Pre-order now!

Range:

195 km

Battery:

800 Wh

Torque:

150 Nm

Weight:

24.5 kg

Smart Assistance

Power Delivered
Smoothly and Precisely

Precision leads. Control defines.

The Zermaz E:volution Carbon is built as a complete performance system — lightweight, highly efficient, and engineered for absolute control. At its core is the DJI Avinox M2S, a next-generation high-performance drive unit that delivers power exactly where and when you need it.

With up to 150 Nm of torque and 1500 W peak output, acceleration is immediate — direct, controlled, and consistent. No lag. No excess. Only precisely managed performance.

Lightweight. Without compromise.

The carbon frame is engineered to maximise efficiency without sacrificing stability. Every element — stiffness, integration, geometry — is tuned to work as one system.

The result is a ride that feels composed and exact: precise through technical sections, stable at speed, controlled under load.

Power, refined by precision

Recognised as the best motor by E-MTB Magazine, the Avinox M1 sets a new benchmark — not just in output, but in how that power is delivered.

Response is immediate. Traction remains consistent. The system adapts seamlessly to your input.

You stay in control. At all times.

Swiss precision. Engineered into every detail.

Every component is selected and configured for one purpose: maximum performance under full control.

High-performance carbon frame — light, stiff, fully integrated
Balanced geometry for precise handling and high-speed stability
Shimano SLX 4-piston brakes with 203 mm rotors
RockShox ZEB 38 Select & Deluxe Select+ suspension
Shimano XT & Deore 12-speed drivetrain
KMC chain engineered for high torque loads
800 Wh battery for extended range
Optional 12A fast charging

Control, when it matters most

With 160 mm of travel front and rear, the suspension system delivers stability, traction, and precision — even in unpredictable terrain.

Fast when you push. Controlled when it counts.

Built beyond expectations

The Zermaz E:volution Carbon is designed for riders who demand more — more efficiency, more precision, more performance.

Not louder. Not exaggerated.

Just better engineered.

Motor & Battery

Motor: Avinox M2S - 150 Nm (1500 W peak)
Battery: Avinox 800 Wh, fixed battery
Maximum Range: 200 km
Expected Range: 115 km
Charging Time: 4-5 hours
Torque: 150 Nm (max torque)
Motor Sensor: Torque sensor
Removable Battery: No

General Features

Brand: Zermaz
Model Year: 2026
Fork: RockShox ZEB 38 Select, 160 mm
Wheel Size: 29"
Tires: Front: Maxxis Assegai MaxxTerra 29x2.5 / Rear: Maxxis Minion DHR II 29x2.5
Brakes: Shimano SLX M7100, hydraulic disc brake (203/203)
Shifter: Shimano Deore SL-M6100
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC
Rear Shock: RockShox Deluxe Select+
Frame Material: Carbon
Kickstand: Yes
Frame Type: Mid-step
Rear Rack: No
Rear Suspension: Yes
Rear Light: No
Tire Type: Off-road tires
Rider: Men
Brake Disc: Shimano SLX M7100, hydraulic disc brake (203/203)

Size & Weight

Weight: 24.5 kg
Max Rider Weight: 120 kg
Bike Type: Full suspension (Fully)

Geometry (M / L / XL)

Parameter	M	L	XL
Crank Length	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm
Saddle Width	143 mm	143 mm	143 mm
Seatpost Length	175 mm	200 mm	200 mm
Stack	626 mm	638 mm	652 mm
Reach	455 mm	480 mm	505 mm
Headtube Length	103 mm	117 mm	132 mm
Headtube Angle	64.5°	64.5°	64.5°
BB Height	350 mm	350 mm	350 mm
BB Drop	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	132 mm
Fork Length (full)	577 mm	577 mm	577 mm
Fork Rake / Offset	44 mm	44 mm	44 mm
Front Center	789 mm	820 mm	851 mm
Chainstay Length	435 mm	435 mm	435 mm
Wheelbase	1223 mm	1254 mm	1286 mm
Top Tube Length	599 mm	627 mm	655 mm
Standover Height	754 mm	753 mm	758 mm
Seat Tube Length	405 mm	425 mm	445 mm
Seat Tube Angle	77°	77°	77°
Saddle Height	735 mm	780 mm	825 mm
Max Seatpost Insertion	289 mm	313 mm	337 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm

Light Batteries, Extended Range

The Avinox battery combines high capacity with low weight – ideal for long rides as well as demanding trail use.

At 800 Wh, it delivers up to 200 km of range while weighing just 3.74 kg. Advanced battery management from DJI ensures strong performance and long service life. Thanks to GaN fast charging (508 W), the battery reaches 75% in just 1.5 hours – perfect for quick stops on the go.

Provides up to 200km Riding Range

800Wh

Battery Weight

3.74 kg

Smartphone Connectivity,
Enhanced Safety

The Avinox system is fully unleashed with the Avinox Ride app. Once paired with the system via Bluetooth, the app provides users with smart features like bike protection, data recording and sharing, assist parameter adjustments, and real-time bike status checking.

The Avinox Ride app connects to the bike via Bluetooth, enabling personalized riding data configuration, abnormal movement alerts, and other features.
