2026

ZERMAZ

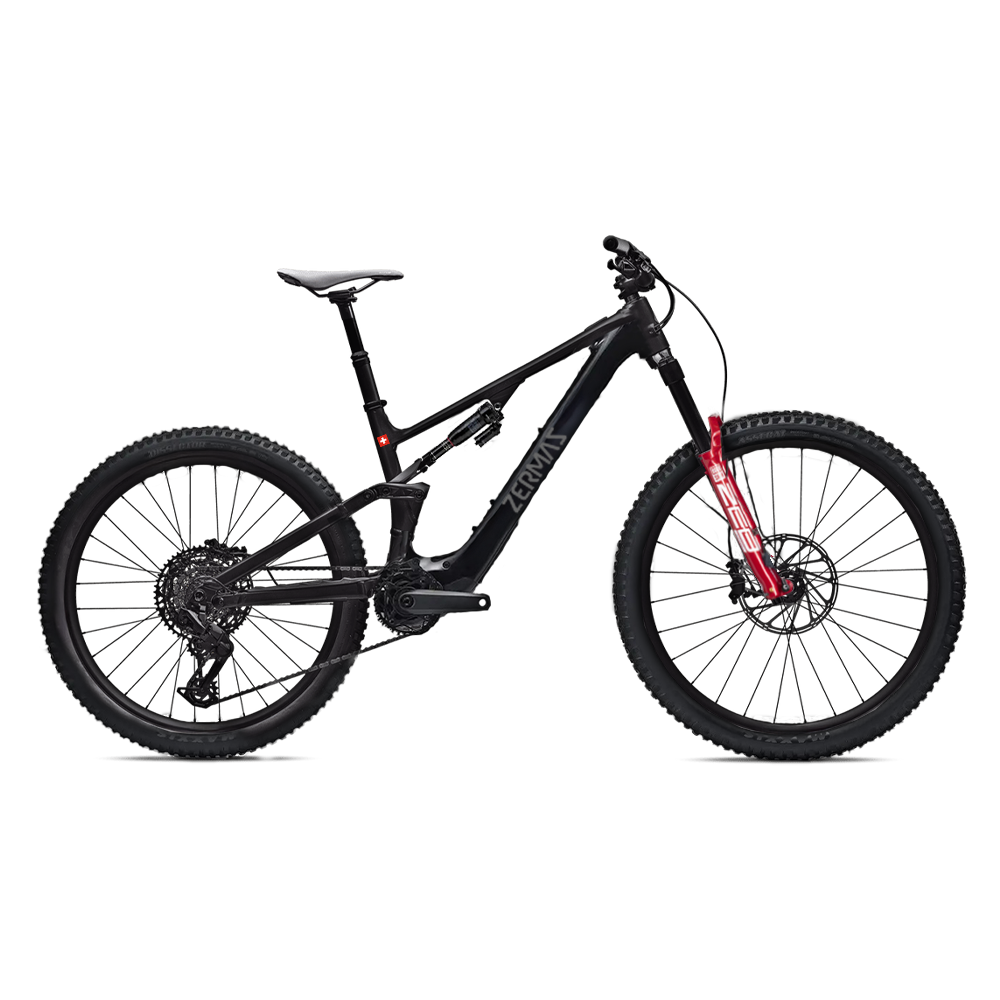

E:VOLUTION CARBON PRO

CHF 6.990

ARTICLE NUMBER: 20262

Raw power, perfect control, and Swiss precision – full-suspension e-MTB powered by Avinox and built around a high-performance carbon frame.

Up to 150 Nm of brutal torque
A solid 1500 watts of peak power
Compact 2.6 kg motor design
Lightweight, stiff carbon frame
Top-tier suspension, brakes, and drivetrain

The power that changes everything – DJI Avinox. 

At the heart of the Zermaz lineup is the revolutionary DJI Avinox M2S motor, the most advanced e-MTB drive system on the market.

CONFIGURATION:

Color:Black

Size: (160 - 175 cm) M L XL

Expected in stock 01/08/2026 | Pre-order now!

Range:

195 km

Battery:

800 Wh

Torque:

150 Nm

Weight:

24.5 kg

Smart Assistance

Power Delivered
Smoothly and Precisely

Dominance isn't the goal. It's the outcome.

The Zermaz E:volution Carbon Pro represents the uncompromising edge of E-MTB performance.

A system engineered for one purpose: precisely controlled power under all conditions.

At its core is the DJI Avinox M2S — a high-performance drive unit that doesn't just release power but manages it with absolute precision. With 150 Nm of max torque and 1500 W peak output, power is immediate.

Direct. Controlled. Without delay. Performance delivered exactly where you need it.

Engineered for maximum load

The ultra-light carbon frame is built around efficiency and stiffness. Geometry, structure, and integration work as one system — ensuring stability and precision even under heavy conditions.

The result: maximum control at speed and uncompromising precision in technical terrain.

A system that follows your lead

The DJI Avinox M2 builds on the award-winning performance of the M1 — ranked best motor by E-MTB Magazine — and takes precision and control even further.

Power is immediate, precisely controlled, and consistently delivered. No overcorrection. No instability.

You lead. The system executes.

Swiss precision — uncompromisingly executed

Every component serves a clear purpose: performance under full control.

High-performance carbon frame — ultra-light, extremely stiff, fully integrated
Aggressive geometry for precise line control
Magura Gustav Pro — maximum braking force with consistent performance
RockShox ZEB 38 Ultimate & Super Deluxe Select+
SRAM Eagle E90 12-speed drivetrain
800 Wh battery for extended, demanding rides
Optional 12A fast charging

Control at the limit

When conditions intensify, precision becomes critical.

The Gustav Pro delivers consistent, maximum braking power — even on long, aggressive descents. The RockShox Ultimate suspension keeps the bike stable, composed, and precise.

Fast when you attack. Stable when it matters. Precise when it counts.

For riders who reject limits

The Zermaz E:volution Carbon Pro is not built for compromise. It's built for riders who demand more — from their equipment and from themselves.

Reduced to what matters. Optimized for maximum performance.

Motor & Battery

Motor: Avinox M2S - 150 Nm (1500 W peak)
Battery: Avinox 800 Wh, fixed battery
Maximum Range: 200 km
Expected Range: 115 km
Charging Time: 4-5 hours
Torque: 150 Nm (max torque)
Motor Sensor: Torque sensor
Removable Battery: No

General Features

Brand: Zermaz
Model Year: 2026
Fork: RockShox ZEB 38 Ultimate, 160 mm
Wheel Size: 29"
Tires: Front: Maxxis Assegai MaxxTerra 29x2.5 / Rear: Maxxis Minion DHR II 29x2.5
Brakes: Magura Gustav Pro
Drivetrain: SRAM Eagle 90
Cassette: SRAM Eagle 90, 12-speed, 12-52T
Chain: SRAM Eagle
Rear Shock: RockShox Super Deluxe Select
Frame Material: Carbon
Kickstand: Yes
Frame Type: Mid-step
Rear Rack: No
Rear Suspension: Yes
Rear Light: No
Tire Type: Off-road tires
Rider: Men
Brake Disc: Magura Gustav Pro

Size & Weight

Weight: 24.5 kg
Max Rider Weight: 120 kg
Bike Type: Full suspension (Fully)

Geometry (M / L / XL)

Parameter	M	L	XL
Crank Length	160 mm	160 mm	160 mm
Handlebar Width	800 mm	800 mm	800 mm
Stem Length	40 mm	40 mm	40 mm
Saddle Width	143 mm	143 mm	143 mm
Seatpost Length	175 mm	200 mm	200 mm
Stack	626 mm	638 mm	652 mm
Reach	455 mm	480 mm	505 mm
Headtube Length	103 mm	117 mm	132 mm
Headtube Angle	64.5°	64.5°	64.5°
BB Height	350 mm	350 mm	350 mm
BB Drop	29.5 mm	29.5 mm	29.5 mm
Trail	132 mm	132 mm	132 mm
Fork Length	577 mm	577 mm	577 mm
Fork Rake / Offset	44 mm	44 mm	44 mm
Front Center	789 mm	820 mm	851 mm
Chainstay Length	435 mm	435 mm	435 mm
Wheelbase	1223 mm	1254 mm	1286 mm
Top Tube Length	599 mm	627 mm	655 mm
Standover Height	754 mm	753 mm	758 mm
Seat Tube Length	405 mm	425 mm	445 mm
Seat Tube Angle	77°	77°	77°
Saddle Height for Effective ST Angle	735 mm	780 mm	825 mm
Max Seatpost Insertion	289 mm	313 mm	337 mm
Min Seatpost Insertion	80 mm	80 mm	80 mm

Light Batteries, Extended Range

The Avinox battery combines high capacity with low weight – ideal for long rides as well as demanding trail use.

At 800 Wh, it delivers up to 200 km of range while weighing just 3.74 kg. Advanced battery management from DJI ensures strong performance and long service life. Thanks to GaN fast charging (508 W), the battery reaches 75% in just 1.5 hours – perfect for quick stops on the go.

Provides up to 200km Riding Range

800Wh

Battery Weight

3.74 kg

Smartphone Connectivity,
Enhanced Safety

The Avinox system is fully unleashed with the Avinox Ride app. Once paired with the system via Bluetooth, the app provides users with smart features like bike protection, data recording and sharing, assist parameter adjustments, and real-time bike status checking.

The Avinox Ride app connects to the bike via Bluetooth, enabling personalized riding data configuration, abnormal movement alerts, and other features.
